Michigan State University Limited Edition eBike - 2024

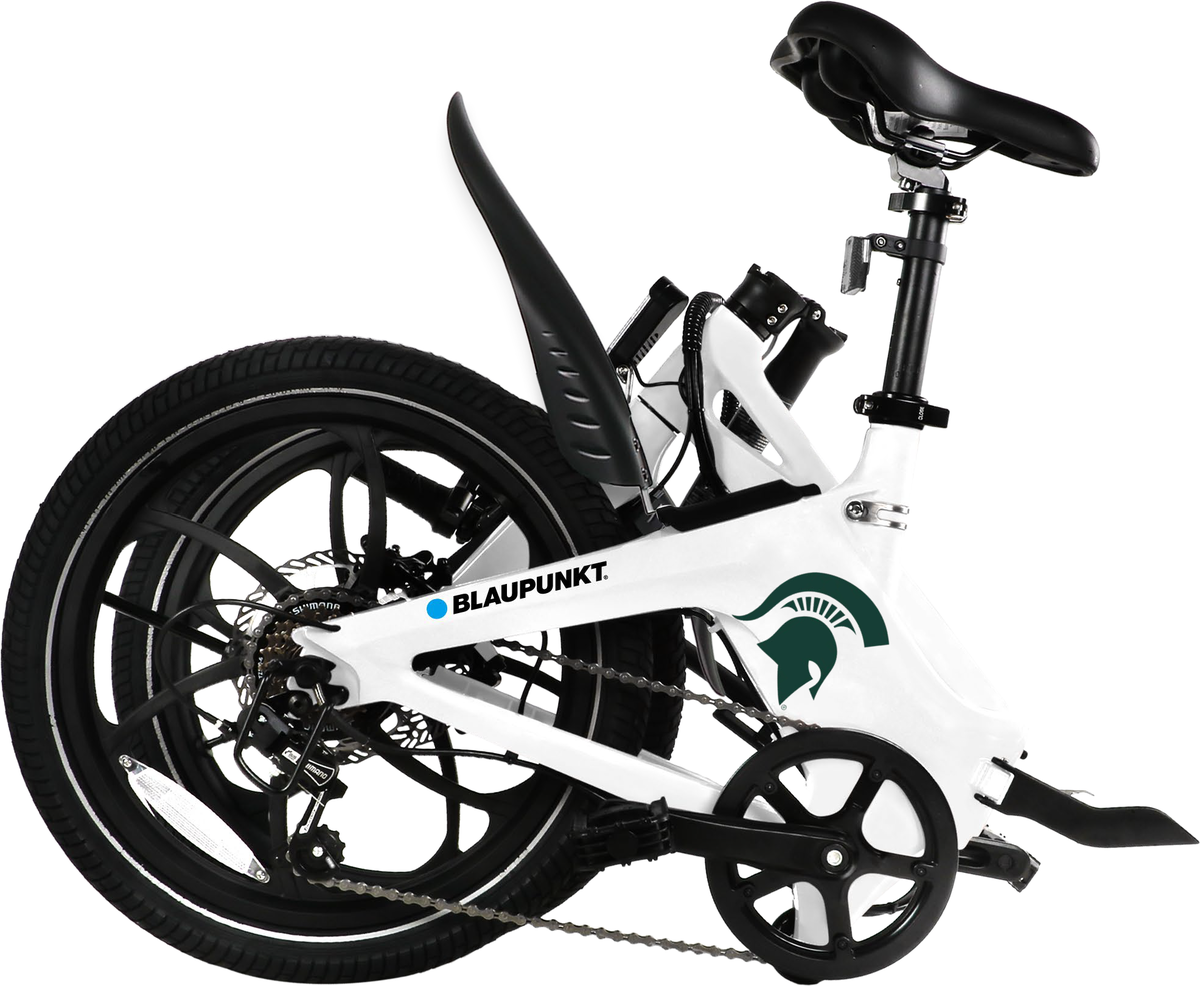

BLAUPUNKT FIENE folding eBike

Featuring a magnesium, single die-cast foldable frame, our bike combines durability with a sleek design.

Weighing only 47 lbs, it is highly portable and effortless to stow away, thanks to the intelligent quick-release mechanism, which includes foldable pedals and handlebar. Comes in one size and fits most adults 4’9” – 6’2” height.

*The range depends on the load, driving style and area of use.

Our Blaupunkt 36V 350W rear wheel hub motor offers impressive speed control with 50 Nm torque. Paired with our efficient LG lithium-ion cells and removable battery housed in the frame, it creates an ideal combination. The motor is maintenance-free, and the integrated BMS in our battery ensures a consistent energy supply.

Our e-bike is equipped with an easy-to-read LCD computer that allows you to choose from 3 levels of motor speed, catering to your specific riding preferences. The LCD computer also provides essential information like battery life, route details, speed, and more. Additionally, you have the option to completely deactivate the motor power.

Blaupunkt foldable electric bicycles, this product is certified by UL Solutions. Representative samples of this product have been evaluated by UL Solutions and meet applicable standards.


Technical Data:

Frame: Single die-cast magnesium (60 x 22 x 41?)
Rims: Black magnesium
Tires: 20? x 2.125
Gears: Shimano 6-speed SIS derailleur (44T/14T-28T)
Brakes (front/rear): Disc brakes, mechanical, 160 mm
Headset: Semi-Integrated
Maximum riding weight: 265 lbs (120 kg)

Motor: Integrated in the rear wheel, DC 36V/350W, 40~45 Nm, brushless, maintenance-free
Battery: 36V/10.5 Ah LG lithium-ion battery with integrated BMS (Battery Management System)
Controller: 36V/15A DC
Sensors: Cadence & speed sensor
Driving modes: 3 levels of pedal and throttle assist. Throttle with walk mode and speed control.
Bicycle computer: LC display with three function keys, backlight. Functions: speed, ODO, TRIP, TIME, PAS LEVEL, battery, LED light, auto power off, error display
Charger: Switching power charger (AC 100 – 240 volts), 42V, 2A
Charging time: About 4-6 hours
Range: Up to 44 miles (70 km)*
Top speed (supported): Max. 20 mph (32 km/h)



LIGHTING & REFLECTORS

Front LED headlight with integrated reflector, powered by bicycle battery
Rear-mounted standard reflector, reflecting pedals, reflecting strips on tire walls


OTHER EQUIPMENT

Front and rear mudguards (removable)
Kickstand
Foldable pedals
Removable battery with lockable key
Charger with plug
Chainguard

DIMENSIONS & WEIGHT

Size (ready to ride): Approx. 60 x 22 x 41? (1520 x 570 x 1040 mm) (LxWxH)
Size (folded): Approx. 31.5 x 20 x 23.5? (800 x 500 x 600 mm) (LxWxH)
Wheel Size: 20? x 2.125
Handlebar width: 22? (560 mm)
Saddle height: min 32” max 40” (813 – 1016 mm)
Seat post tube: Ø 1.23? (31.6 mm)
Wheelbase: 40? (1010 mm)
Stand Over Height: 18” (457 mm)
Top Tube Length: 22” (559 mm)
Reach: 19” (483 mm)
Head Tube Length: 4.25” (108 mm)
Weight (including battery): Approx. 47 lbs (21 kg)
Battery weight: Approx. 5 lbs (2 kg)


COMES INSIDE BOX

Folded Blaupunkt eBike
Charger with plug
Rear reflector to attach to seat post
Front and Rear Mudguards for self-assembly
Lithium battery in case with 2 keys
User manual

*The range with one battery charge depends on various factors, such as support level used, driving speed, physical fitness and personal performance of the rider, shifting behavior (if gearshift is available), road conditions, wind conditions, seating position, system weight, and temperature.
