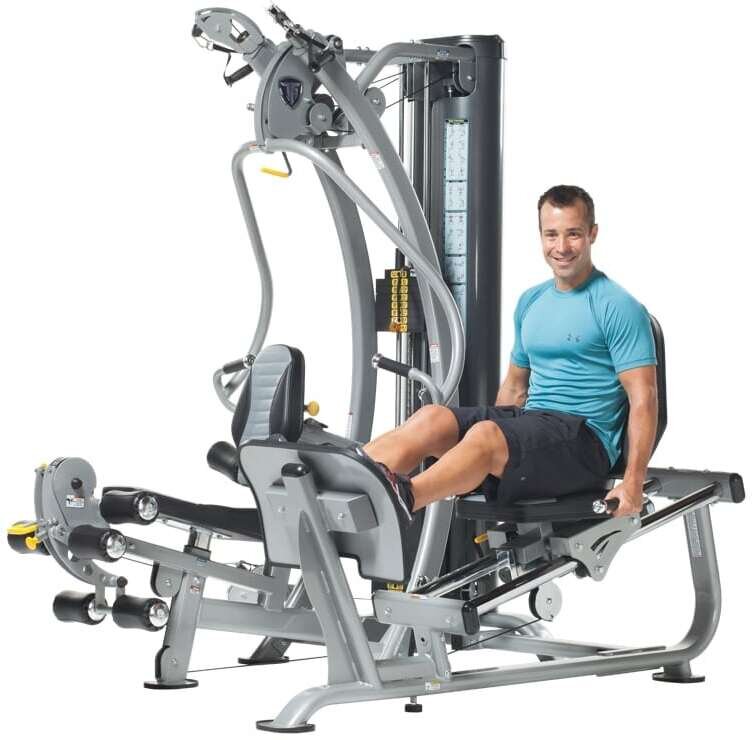

Tuff Stuff Hybrid Home Gym (SXT-550) with Optional Leg Press (SXT-LP)

TuffStuff’s Hybrid Home Gym (SXT-550) with Optional Leg Press (SXT-LP) is a perennial award-winning home gym platform. It features a combination of popular functional training, a traditional arm press, leg extension / leg curl station, and a leg press attachment. With six preset pulleys in three separate training zones (high, mid, and low), the hybrid home gym is fully adjustable, and empowers users to perform dozens of exercises.

- 2020 BEST HOME GYM 5X Winner
- Space efficient forward-facing design
- Six (6) preset pulleys in three separate training zones
- Adjustable seat height and telescopic seat back pad adjustment
- Combination seated leg extension/ seated leg curl station
- Unique cable ratio for enhanced cable travel
- Unique “Radius” frame design
- 200 lbs center-drilled steel weight stack
- Extended cable travel; Resistance at handle is approx 1/4 of the weight selected
- Full length protective steel weight shields
- Leg press attachment with 400 lbs resistance
- Home Lifetime Warranty* and Light Commercial Warranty
- Available without leg press attachment (MSRP: $6,099)

Weight 860 lbs
Dimensions L 84 x W 74 x H 84 in
Home Lifetime Warranty
HOME LIFETIME WARRANTY*
Lifetime on everything to the original purchaser when used only in a HOME environment, applies to defects from manufacturer only.
* See Owner’s Manual for details.

Light Commercial Warranty
LIGHT COMMERCIAL WARRANTY

10 YEARS: Structural main frames, welds, cams and weight plates.

5 YEARS: Pivot bearings, pulleys, bushings, guide rods and gas shocks.

1 YEAR: Cables, linear bearings and pull-pin components.

6 MONTHS: Upholstery, finish and rubber grips.

ALL OTHER PARTS not mentioned, one year from the date of purchase to the original purchaser.

Light Commercial Use: Light Commercial warranty applies only to facilities like hotels, apartment complexes, personal training studios, fire & police stations, etc. where the equipment would be used by no more than 30 people per day.

Frame Materials
2×3” 11-gauge oval tubular steel frames with a combination of 2×2” round tubing.

Welds
All welded construction by inert-gas MIG welding conforming with all Structural Welding Code – Steel Standards and Specifications.

Finish & Colors
Eight-step electrostatically applied powder coat finish.

Main frame: Platinum Sparkle Accent: Cathedral Gray

Upholstery
Durable high density pads upholstered in two-tone (Black & Cadet) premium grade, double-stitched naugahyde.

High density 2” thick rebond urethane foam glued to 1” industrial plywood backing, trimmed and formed to exact fit.

Adjustment Pins
1/2” push-pull spring loaded solid steel adjustment pins with ultimate load of 9040 lbs. and 46,042 psi sheer strength.

Cables
3/16” and 1/8” USA-Made / Certified EXERFLEX PRO® high performance fitness cable.

Cable Ratio
The SXT-550 Hybrid Home Gym contains a unique cable ratio designed to provide extended cable travel and micro 2.5 lb increment adjustments. With extended cable travel, users may perform a variety of functional exercises (including fast repetition sports-related training) further away from the machine. As a result, the resistance felt at each handle is approximately 1/4 of the weight selected. The optional Leg Press Attachment (SXT-LP) contains an inverted cable ratio 2/1 which allows the 200 lbs weight stack to provide approximately 400 lbs of resistance.

Other
Solid steel weight plates with self aligning low friction sleeves.

1” solid steel pivot axles with non-friction 2” sealed bearings (load rating of 2400 lbs.) internally encased on primary pivots, and oil-impregnated bronze bushings on all secondary pivots.

3/4” solid steel 1045 (tgp) polished chrome-plated finish.
