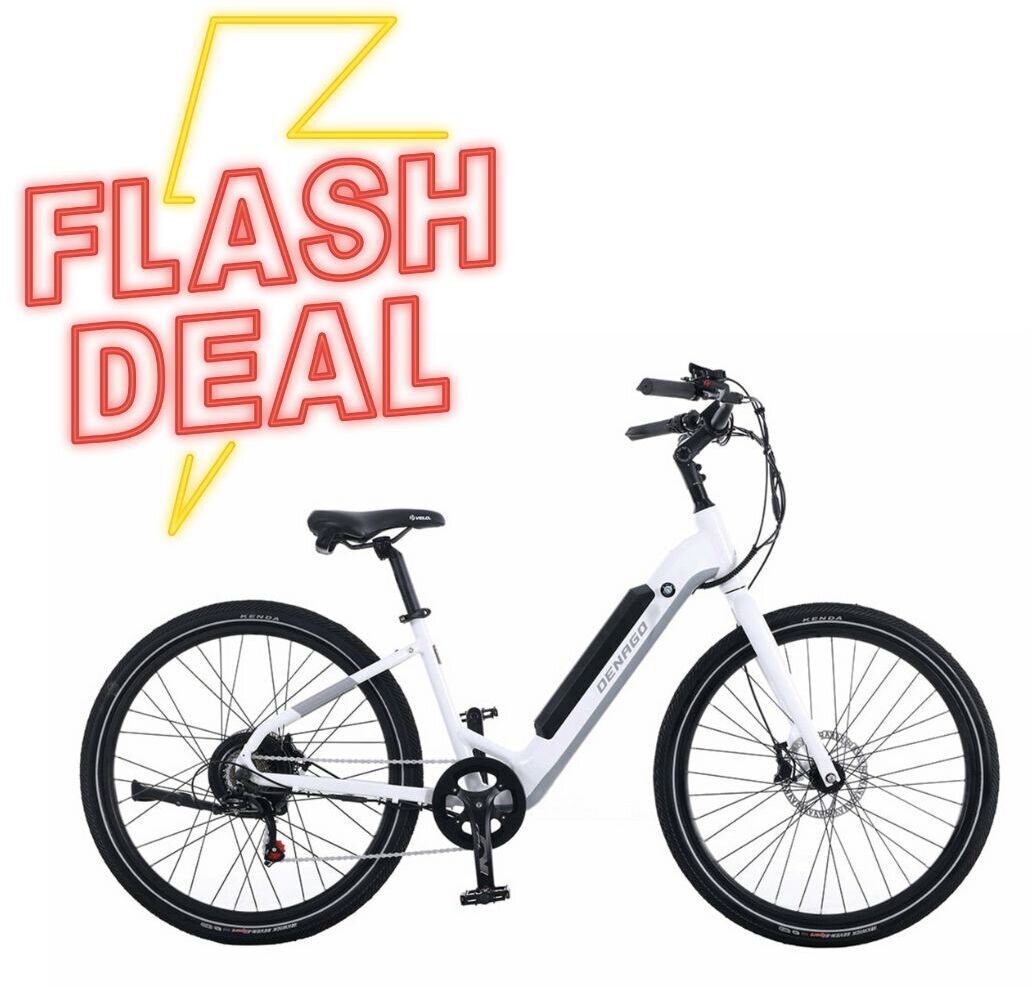

Denago Denago City Model 1 Step-thru eBike

Denago Denago City Model 1 Step-thru eBike
  • Color: Blue with Black
  • Color: White with Grey
  • Color: Coral with Grey
This item is currently not available.

Details

D&D Denago Pro Build Available for $199

With a step-thru frame, our City Model 1 eBike features an ultra-low standover height, making it simple to start and stop. Our comfort geometry gives you an upright riding position to easily see your surroundings. The City Model 1 is focused on your riding comfort, with a wide, padded saddle. The adjustable stem can be raised or lowered to put the handlebar in a comfortable position for your body type.

EBIKE FEATURES:

Class III eBike, up to 28 MPH pedal assist and 20 MPH throttle
Adjustable speed limiter can be set as low as 11 MPH to meet local trail rules or accommodate riders who prefer slower speeds.

5 levels of pedal assist
- PAS 0: no motor assist
- PAS 1: 15 MPH
- PAS 2: 17.5 MPH
- PAS 3: 20.5 MPH
- PAS 4: 23 MPH
- PAS 5: 27 MPH

Throttle only: 20 MPH
Speeds will vary slightly depending on terrain, rider weight, and battery charge.

LCD display
High-resolution digital dashboard shows your speed, trip distance, time, battery charge, pedal assist level, and more; all at a glance. There's even a backlight for night riding.

Powerful 500 watt hub motor
Plenty of torque for climbing hills or handling headwinds with ease.

High-capacity battery and 3 Amp fast charger
Go further between charges with a big, 652.8 Wh battery, built with premium LG cells. Recharge 50% faster than competing brands.

40+ mile range
Real-world range testing shows most riders will get more than 40 miles on a single charge when using pedal assist, and 20 miles on throttle alone.

Denago recommends:
One Size for riders 5'2" - 5'11

Specs

Pedals Platform, aluminum alloy, 9/16” with reflectors
Motor Shengyi rear hub motor, 48V, 500W, 50 Nm torque rating
Battery 48V, 13.6Ah, 652.8Wh, Semi Integrated style with LG cells
Charger Multi-voltage 110-240V, 3A Fast Charger with USA plug
Controller/Display Denago K5242 LCD with speed, motor power, trip distance, odometer, trip time, battery charge level, and walk mode functions
Hubs Front - Quando Disc, nutted, 36 holes; Rear Shengyi DGW22, nutted, 36 holes
Rims Aluminum Alloy, 36 holes, 27.5”
Stem Adjustable angle, 31.8mm clamp, 1 ?” threadless, 90mm extension
Chain KMC Z-Series, 3/32”
Frame 6061-T6 Aluminum Alloy, Step-thru style
Tires Kenda Kwick Seven.5, 27.5 x 2.2”, K-Shield puncture protection with safety reflective stripe
Brakes Zoom HB875 hydraulic disc with motor cut-off
Saddle Velo Plush Comfort with lift handle
Spokes 36 Black ED13 gauge spokes front, 36 12 gauge spokes rear
Headset 1 1/8”, sealed, threadless
Crankset Aluminum alloy, 170mm, 42 tooth chainring
Seatpost Zoom aluminum alloy, 30.4mm diameter, 300mm length
Shifters Shimano Tourney, 7 speed, trigger
Handlebars Zoom aluminum alloy, 31.8mm diameter, 660mm long
Tape/Grips Black rubber, lock-on style
Bottom Bracket Sealed, square taper, 126mm, English thread
Rear Derailleur Shimano Tourney, 7 speed
Accessories & Extras Kickstand: included, Handlebar Bell: included
Cassette/Freewheel Shimano Tourney, 7 speed, 14-28 teeth

* Subject to change without notice.

Part Numbers

Option UPC MPN
Blue with Black / One Size 810066083479 DE-E10-BBK
Coral with Grey / One Size 810066083462 DE-E10-CGY
White with Black / One Size 810066083486 DE-E10-WBK
White with Grey / One Size 810066083455 DE-E10-WGY
